5  Stretching a Zone

2Zonohedra have bands of parallel edges. Any such band of edges can be stretched to alter the shape of the zonohedron. Stretching a band of edges does not alter any angles.

3PIC

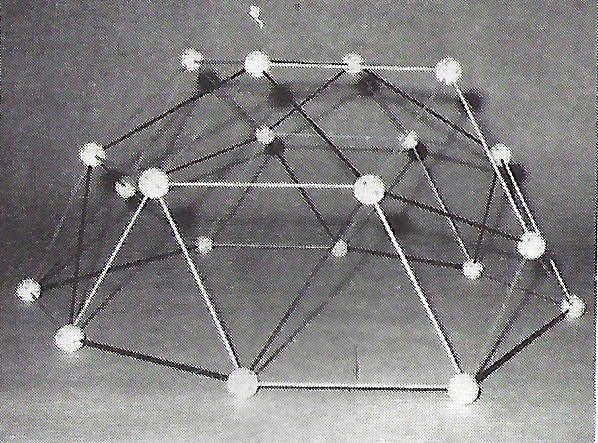

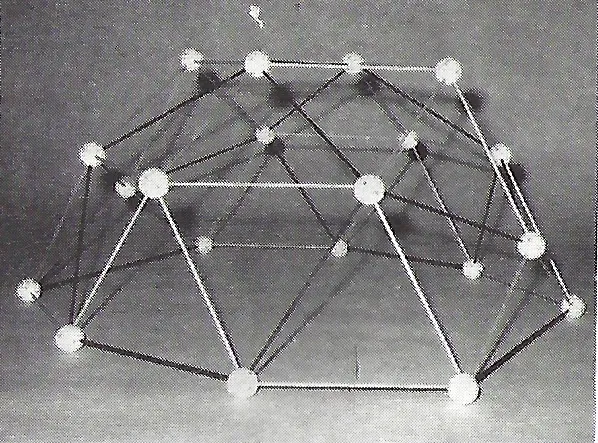

Figure 5.52: Six zone zome - half a triacontahedron

4PIC

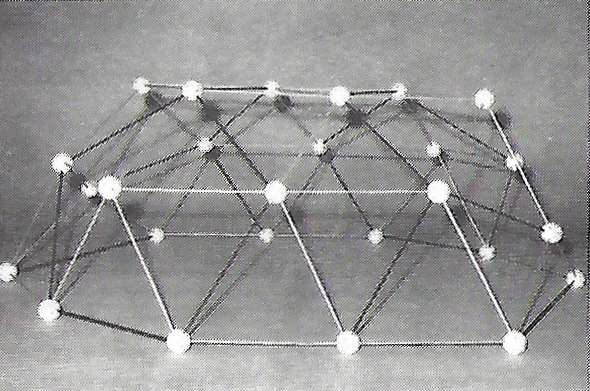

Figure 5.53: 1 horizontal zone stretched to 2

5PIC

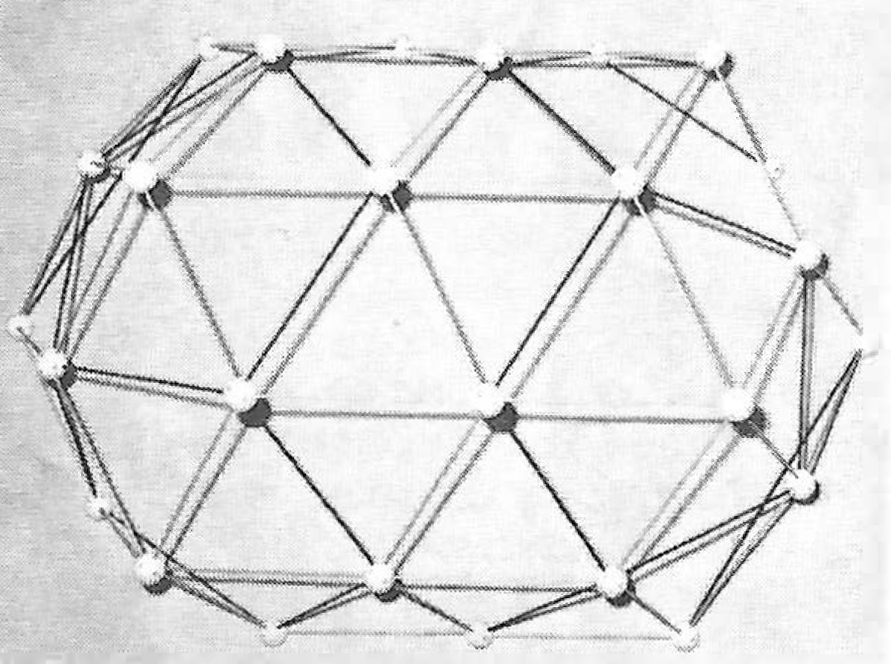

Figure 5.54: same as above (top view)

6PIC

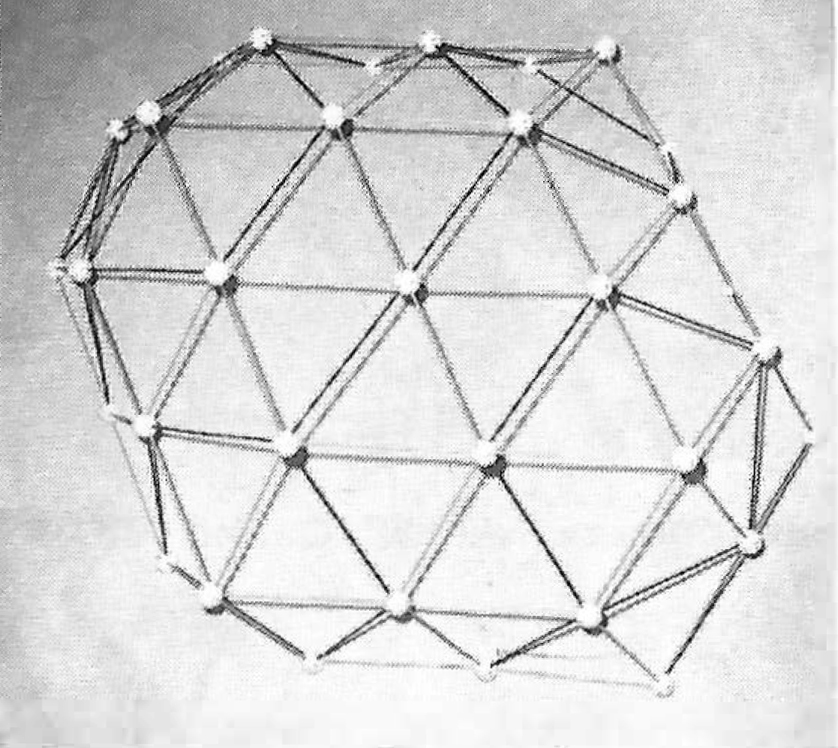

Figure 5.55: 2nd horizontal zone stretched to two top panels 2x2 (top view)

7PIC

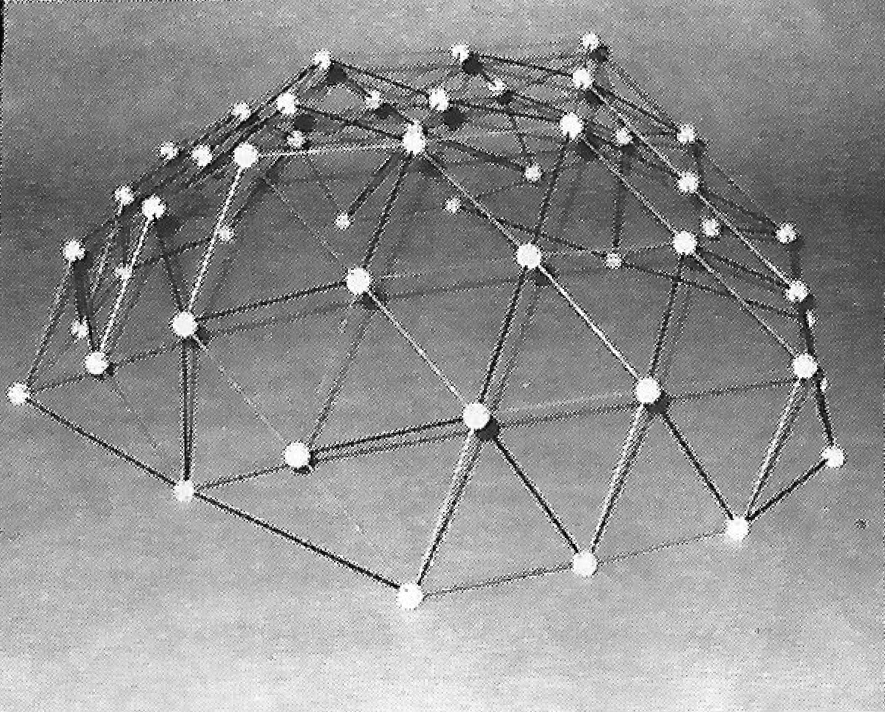

Figure 5.56: 2 side zones stretched

8 Stretching zones allows one to build buildings of different shapes using the same kinds of components.

9PIC

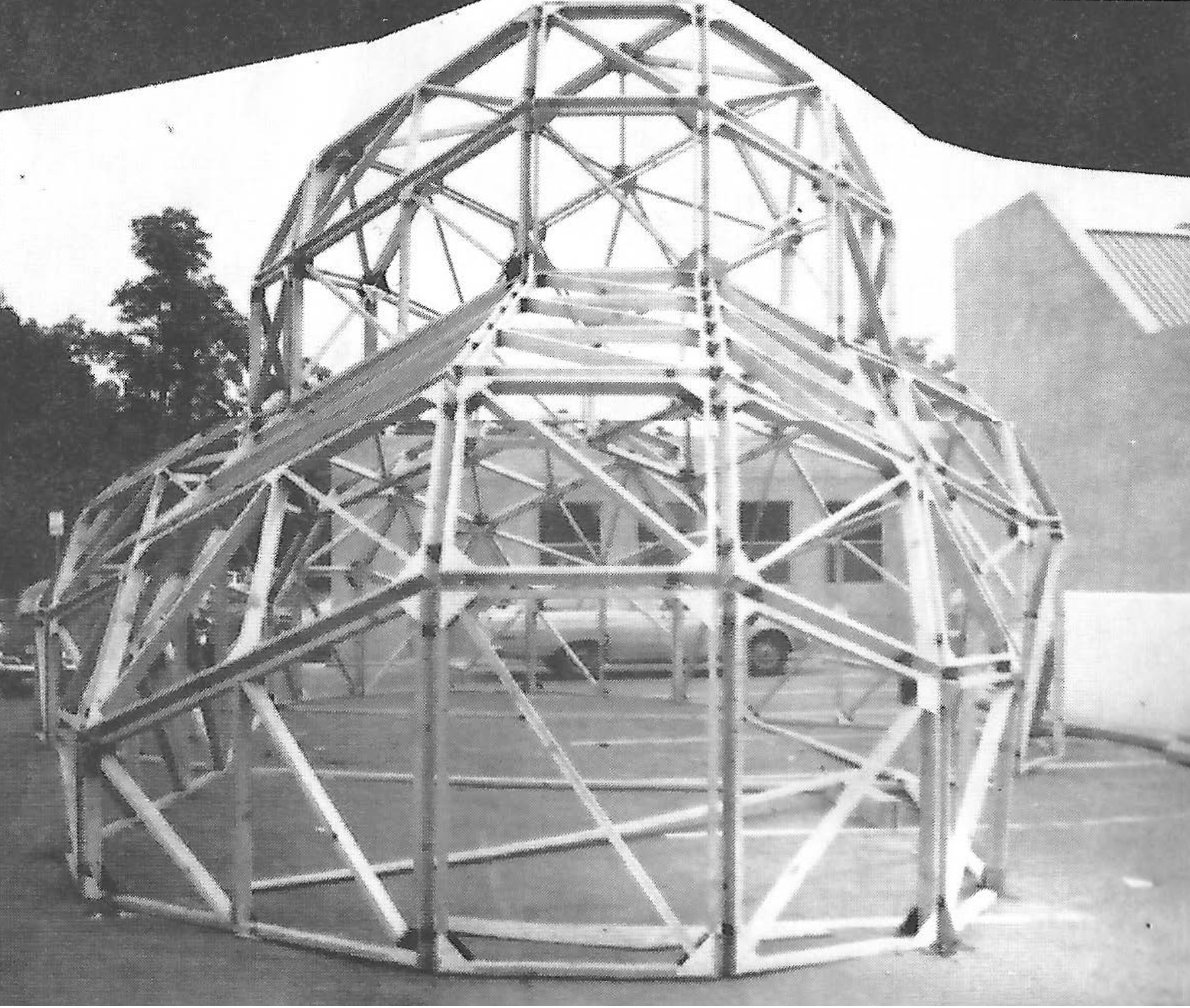

Figure 5.57:

10PIC

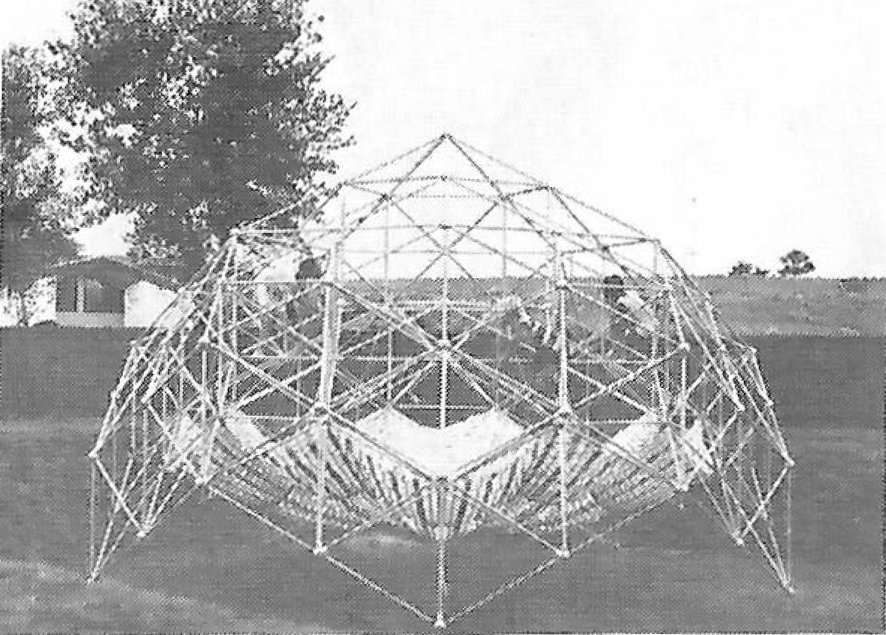

Figure 5.58:

11PIC

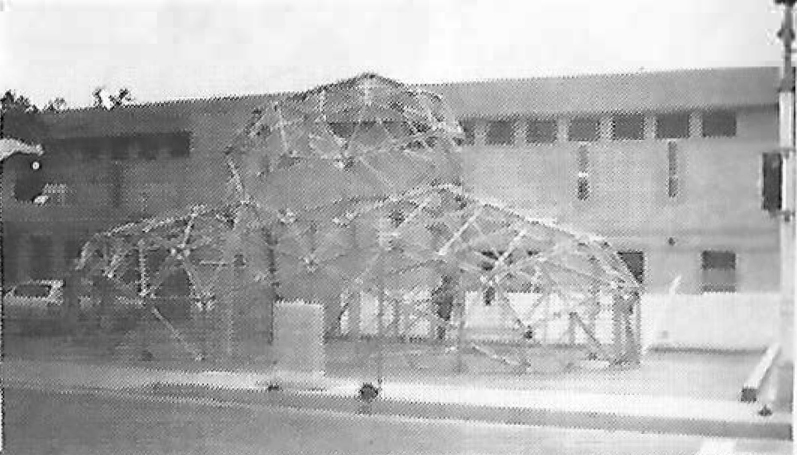

Figure 5.59:
